Curiosity acquired this image using its Mars Hand Lens Imager (MAHLI), located on the turret at the end of the rover’s robotic arm, on November 15, 2014, Sol 809.
Credit: NASA/JPL-Caltech/MSSS



NASA’s Curiosity rover is now in Sol 2196. Due to a rover glitch – still being worked on by engineers – no images have been relayed back to Earth since Sol 2172 on September 15th – nearly a month.

“As Curiosity continues to mend, I’ve been looking forward to our next drill sample of gray rock,” Fraeman reports. “Some interesting features we’ve seen on Vera Rubin Ridge are small ‘swallowtail crystals’ often associated with the boundary between gray and red rocks on the ridge top.”

Geologic clues

Fraeman has been thinking about these features, and reflecting on past results from Curiosity when the robot was just beginning to explore Mt. Sharp at the Pahrump Hills region. Back on sol 809, after the robot brushed away the dust on target “Mojave,” the team was surprised and excited to discover hundreds of millimeter-sized, rice-shaped crystals on its face.

“These crystals are geologic clues to what happened in the past,” Fraeman points out. “What were these unique features made of? How and when did they form?”

Swallowtail crystals close to drill attempt at “Inverness.” This image was taken by Chemistry and Camera (ChemCam) Remote Micro-Imager onboard NASA’s Mars rover Curiosity on Sol 2163, September 6, 2018.
Credit: NASA/JPL-Caltech/LANL















New paper

Curiosity scientist Linda Kah and colleagues address these questions in a new paper available in the journal Terra Nova titled “Syndepositional precipitation of calcium sulfate in Gale Crater, Mars.”

That paper can be found here at:

https://onlinelibrary.wiley.com/doi/full/10.1111/ter.12359

Sizes, shapes, orientations

For this study, Kah and colleagues carefully studied the sizes, shapes, and orientations of the unusual crystals at Mojave and several nearby targets. They integrated these findings with the geologic setting, chemistry, and mineralogy of the Pahrump Hills area to infer the presence of shallow, salty, and sometimes ephemeral waters during this period in Gale’s history.

Kah and co-authors explain that the crystal shapes are distinctive of gypsum salts that precipitate in lake, playa, and near-shore ocean environments.

“Interestingly, Curiosity did not detect any large differences in the composition of rocks containing crystals versus nearby, non-crystal-containing rocks,” Fraeman notes. “This result suggests the calcium sulfate that originally formed the crystals had either been dissolved at a later time and/or that the crystals had incorporated a lot of the original rocks around within them when they formed.”

The shapes, sizes, and orientation of crystals give clues to how they grow.

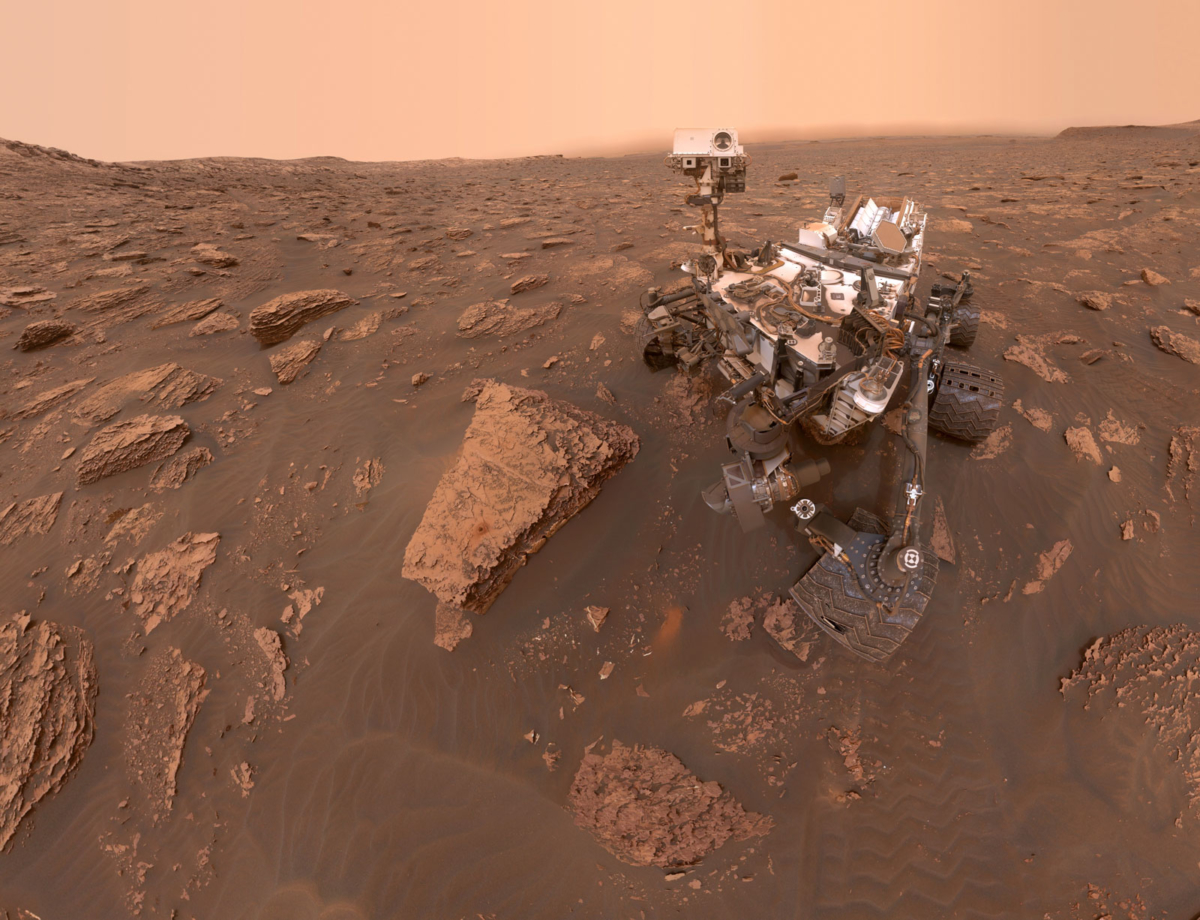

Curiosity Mars rover – on the prowl since August 2012.
Credit: NASA/JPL-Caltech/MSSS

Swallowtail crystals

Kah and co-authors showed the crystals at Pahrump were randomly oriented and occurred between and within cemented layers.

“Combined with the crystals’ elongated shapes, this suggests that they grew at the interface between loose, water-logged sediment and either shallow water or air,” Fraeman says. “Interestingly, small amounts of organic (carbon-bearing) material can cause crystals to have shapes similar to those observed at Mojave, which is consistent with Curiosity findings of organic material in the Mojave drill sample.”

In conclusion, Fraeman says that the swallowtail crystals on Vera Rubin Ridge are also known shapes of gypsum crystals. “Why are these crystals so different in form from what we saw back at Mojave? What does this all tell us about ancient environments at Gale Crater?”
